How to display a percentage value on a form
Comments
-

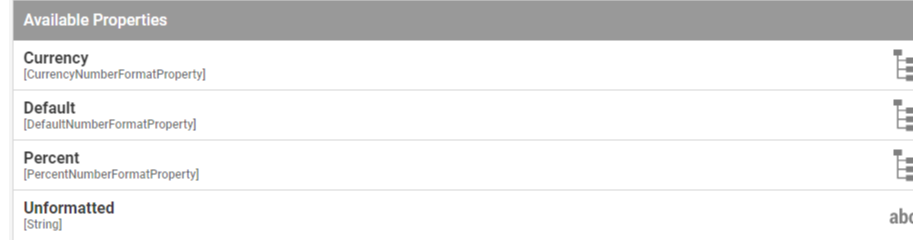

When you map a decimal value into your form, you should have the option to 'drill down' into the value and select the formatting that you need. I've attached the screenshot for the same.
-
You can also refer the below sample use case or example:-

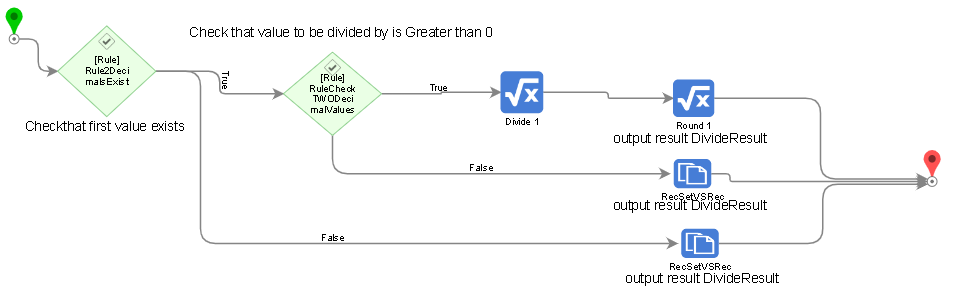

In the flow calculate the percentage as input and give the two values to be calculated :
First rule, checks that the first value actually has a value, if not CREATE data = 0 output DivideOutput
Second rule, checks that the value to be divided by is more than 0, if not create data = 0 output DivideOutput
Lastly divide and round if necessary and call the final output ALSO DivideOutput
The End step then maps the DivideOutput as a Decimal value.
-
Now, in the form, create a textbox (not a number box), and then map the entry's percentage to the text value on your form.
