Cleaning Up Unused Entities
We’re doing some cleanup in our Decisions environment. We want to:
- Find entities not linked to any project
- Identify entities that have no dependencies
- Check backup history of folder resources associated with a project
Comments
-
To check for unused or orphaned resources directly from the DB, try these:
- Entities not associated with any project:
SELECT ehd.id, ehd.entity_name, ehd.created_by, ehd.deleted, ehd.entity_type_name FROM entity_header_data ehd LEFT JOIN module_resource mr ON mr.id = ehd.id WHERE mr.id IS NULL AND ehd.created_by <> 'SYSTEM' AND ehd.deleted = 0;
- Entities with no dependencies:
SELECT ehd.id, ehd.entity_name, ehd.entity_type_short_name FROM entity_header_data ehd WHERE ehd.deleted = 0 AND ehd.created_by <> 'SYSTEM' AND ehd.id NOT IN ( SELECT from_entity_id FROM module_resource_dependency UNION SELECT to_entity_id FROM module_resource_dependency );

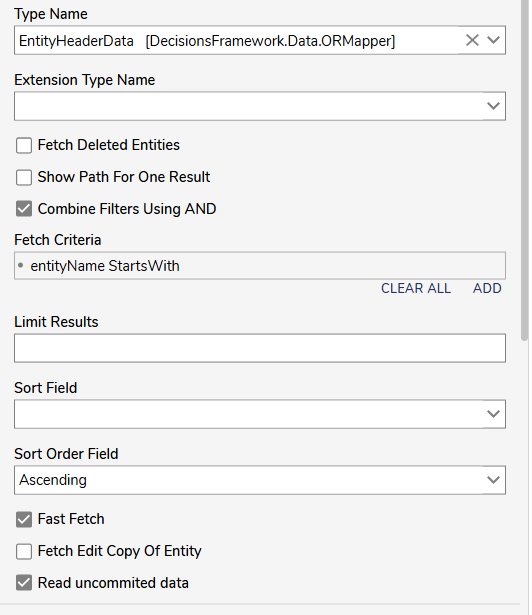

To check the backup history folders, you can use the Fetch Entities step with the data source set to
EntityHeaderData
.Here’s how to configure it:
- Set the Fetch Criteria to
entityName StartsWith
and pass "History" (or whatever prefix your backup folders use). - Set the Parent Folder Id to the base project folder ID.
- Leave the rest as defaults unless you want to limit or sort the results.
This will give you all
History

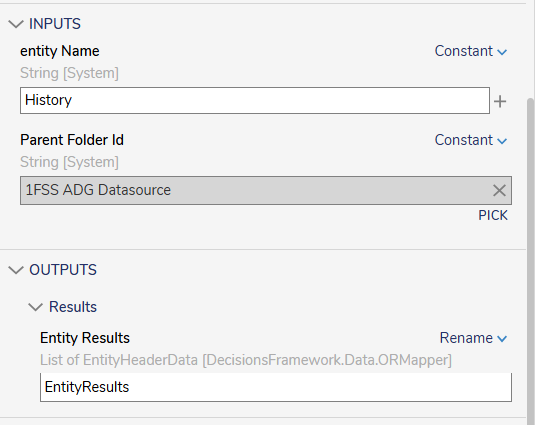

folders directly under that project.Example setup:
