Hierarchical View not displaying RunFlowInlineField

denhan

Hi,

I'm having an issue with displaying a link-button in a report using the RunFlowInlineField, specifically when using the Hierarchical View view-mode. The button simply doesn't display at runtime. It displays fine in the report preview inside the report designer.

However, in the default "Data" view-mode it displays and works fine at runtime.

I'm running Decisions version 9.6.1.74931, but have verified the same issue occurs in version 8.22.0.73268.

Is this an expected behaviour, or could it be a configuration issue?

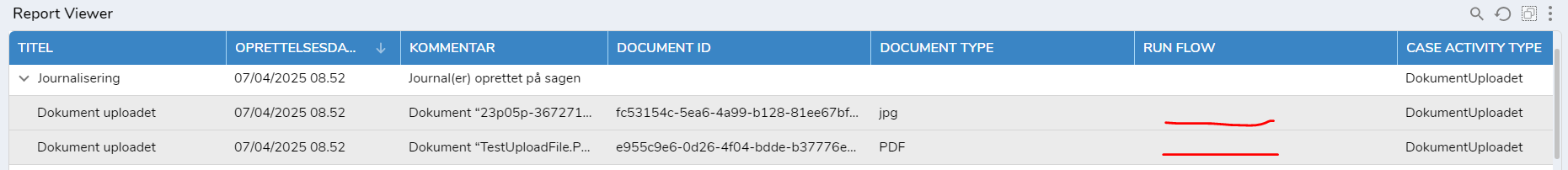

Ref a (Hierarchy View doesn't show "Test" under "Run Flow" column):

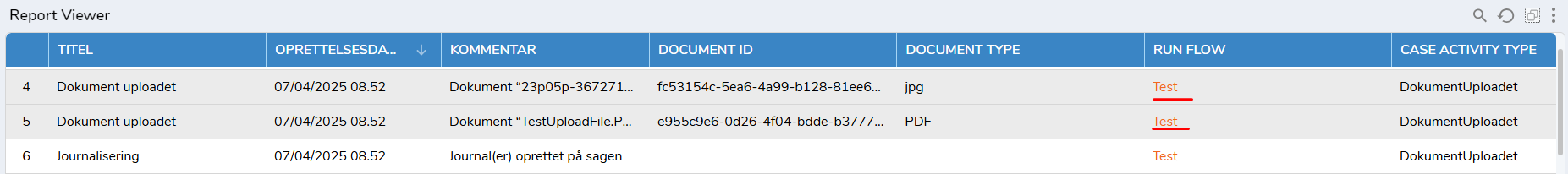

Ref b (Data View shows "Test" under "Run Flow" column):

amershaik_Decisions

Hello,

To further investigate this requirement, we've created a support ticket on your behalf and will reach out to you there.

Here's the ticket number:

[T-083495] Hierarchical View not displaying RunFlowInlineField

Additionally, once we find the resolution, we’ll share the details here as well.

amershaik_Decisions

We've tested the scenarios on multiple versions (v8.21, v8.22, v9.5, v9.6, v9.7, and v9.8) and discussed the findings internally.

There was an issue with the Hierarchical View when used with RunFlowInlineField up until v9.6. Specifically, when switching to Hierarchical View on the page or after running the report, the records for the RunFlowInlineField did not appear. This issue was present in versions before v9.7, but it was addressed along with other fixes in v9.7 and later versions.

To resolve this issue, please upgrade your instance to the latest Decisions version (v9.8).
